Lower maintenance cost with affordable high quality products

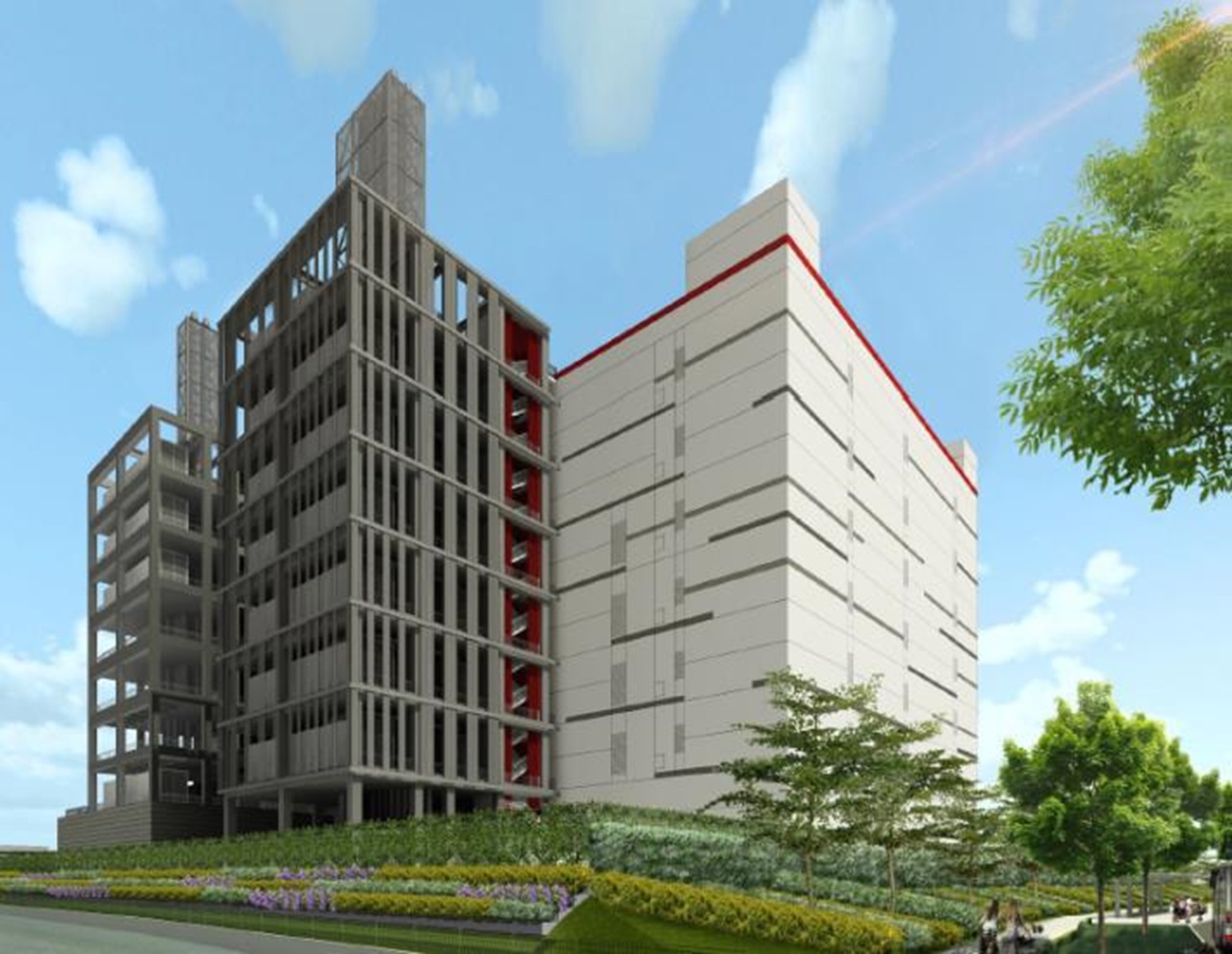

Singtel strategic location with new rated Tier 3 Plus on TIA-942 standard data centre, DC West, complements the development plans for Jurong to become the next largest regional and commercial hub outside the Central Business District. Apart from its state-of-the-art facilities, it will offer diversity to our network of data centres located in the central and eastern of Singapore. Services range from entry-level rack space, high density rack solutions to caged areas to customised private vaults.

Cooling system feature:

  • Water cooled chiller system: N+1 with closed loop chilled
  • water distribution system
  • CRAC configuration: N+20%
  • Cooling density built to 2000W/sqm
  • Fully integrated and monitored climate control systems
  • 24hrs of makeup water storage at full load

The Challenge

Due to the requirement for Tier 3 Plus DC, critical mission for system is important which only allow the system to have a downtime for 15min a year due to the Cloud data for the CRAH unit. Every valve quality is important as it may affect the system if there is a quality issue. Also, delivery for the valve is critical for the short construction period to cater for the need for new tenant.

The Solution

AVK_ICV have been specified for the project due to renown quality for the valves. Valve was designed to meet the most stringent requirement for indoor and outdoor purposes. Moreover, as AVK provide all the parts for our own factories, quality is ensured at every part.

Project description

  • Project Type: New Data Centre
  • Project Name: Singtel West Data Centre
  • Application: HVAC
  • Location: Singapore
  • Owner: Singtel Group
  • Consultant: DSCO Group
  • Contractor: Shin Nippon Air Technologies
  • Distributor: Chemline Product Asia Pte Ltd

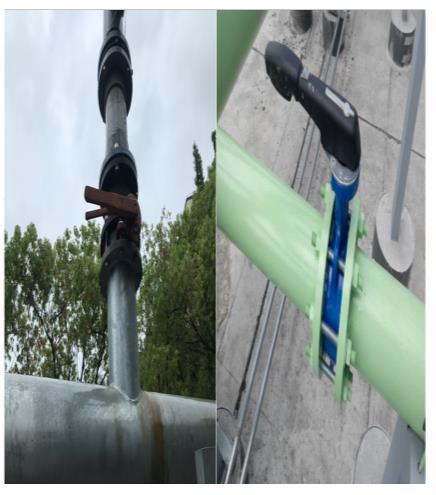

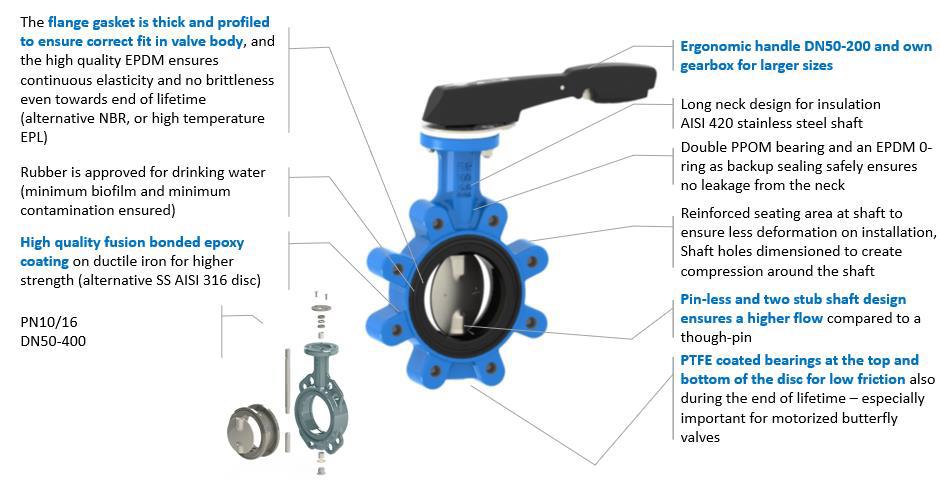

AVK_ICV Concentric Butterfly Valve

Application: Crac, Chiller and Branch - 65mm to 400mm (2,000 pcs)

AVK_ICV Double Eccentric Butterfly Valve

Application: Header (Critical Mission) - 700mm to 1,200mm (150 pcs)
