AVK REPAIR CLAMP, PN16

Fingers, AISI 304, EPDM rubber, vulcanized spanner plate

Contact

Enquiries (Office)

AVK Singapore Pte. Limited, 40 Gambas Crescent Nordcom 2 757018 Singapore Singapore

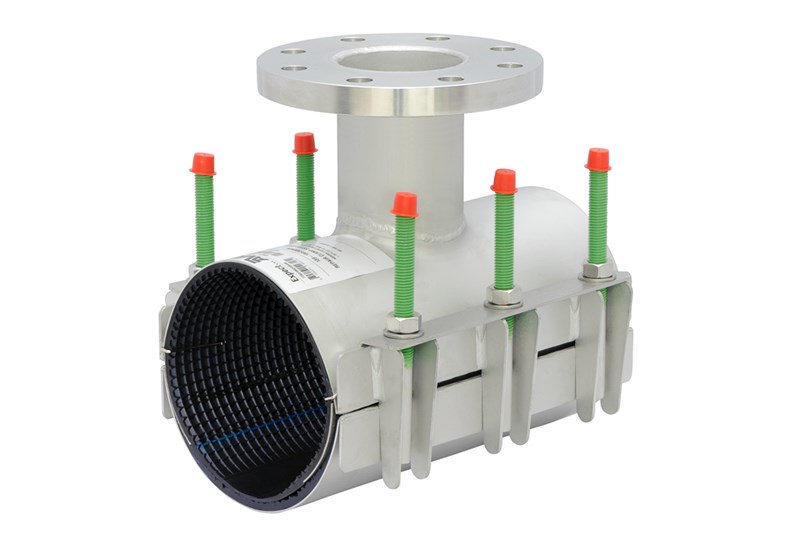

Double band repair clamp, EPDM, ribs, stainless steel 304 with flanged outlet

AVK repair clamps ensure a cost effective and reliable solution for quick repairs on steel, copper, asbestos cement, cast iron and plastic pipes. A pipe with a hole or a crack will be repaired permanently. The stainless steel repair clamps are passivated in order to ensure an optimum corrosion resistance. The repair clamps are provided with a waffle structured rubber gasket and blunt ending to create a fully circumferential seal.

Variant 729/D2-001
DN: DN100 - DN500
PN: PN 16

Features

  • Clamp made out of a pre-rolled plate of stainless steel AISI 304
  • Clamp is manufactured with a hinge point in order to simplify installation
  • Design with welded AISI 304 studs and fingers
  • Clamp is completely pickled and passivated after welding
  • Clamp is manufactured with flanged branch
  • Studs are PTFE coated to prevent cold welding (galling)
  • Lining of EPDM rubber with waffle structure and blunt ending
  • Spanner plate is completely vulcanized into the rubber lining
  • Clamps available in different diameters
  • Clamps available in different lenghts: 300, 400, 500 and 600mm
  • Studs protected with plastic protection caps

Downloads

Datasheet

Reference nos. and dimensions:

Scroll for more info
Reference no. Pipe diam.
mm		 L
mm		 PN
Class		 Flange
DN mm		 Theoretical
weight/kg
729-D2-0128-0402067F2G 108-128 300 PN16 100 10
729-D2-0185-0402067F2G 165-185 300 PN16 100 11
729-D2-0185-0502067H2G 165-185 400 PN16 150 15
729-D2-0196-0602067H2G 176-196 500 PN16 150 16
729-D2-0238-0502067F2G 218-238 400 PN16 100 13
729-D2-0238-0502067H2G 218-238 400 PN16 150 15
729-D2-0238-0602066K2G 218-238 500 PN16 200 17
729-D2-0270-0502087F2G 250-270 400 PN16 100 16
729-D2-0270-0602087H2G 250-270 500 PN16 150 18
729-D2-0270-0702086K2G 250-270 600 PN16 200 19
729-D2-0293-0602087F2G 273-293 500 PN16 100 19
729-D2-0293-0702087F2G 273-293 600 PN16 100 21
729-D2-0335-0502087B1G 315-335 400 PN10 50 20
729-D2-0344-0602086K2G 324-344 500 PN16 200 26
729-D2-0344-0602086P2G 324-344 500 PN16 300 27
729-D2-0344-0602087F2G 324-344 500 PN16 100 19
729-D2-0344-0602087H2G 324-344 500 PN16 150 22
729-D2-0344-0602087K2G 324-344 500 PN16 200 -
729-D2-0344-0702086P2G 324-344 600 PN10 300 26
729-D2-0344-0702087P2G 324-344 600 PN16 300 37
729-D2-0358-0602086K2G 338-358 500 PN16 200 39
729-D2-0358-0602087H2G 338-358 500 PN16 150 37
729-D2-0385-0602087B2G 365-385 500 PN16 50 36
729-D2-0385-0602087H2G 365-385 500 PN16 150 38
729-D2-0430-0702086K1G 410-430 600 PN10 200 40
729-D2-0488-0602086K1G 468-488 500 PN10 200 45
729-D2-0488-0602087F2G 468-488 500 PN16 100 47
729-D2-0488-0602087H1G 468-488 500 PN10 150 48
729-D2-0536-0602087F1G 516-536 500 PN10 100 49
729-D2-0536-0602087F2G 516-536 500 PN16 100 50
729-D2-0536-0602087H1G 516-536 500 PN10 150 50
729-D2-0536-0602087H2G 516-536 500 PN10 150 50
729-D2-0536-0702086P1G 516-536 600 PN10 300 53
Enquiry
Scroll for more info

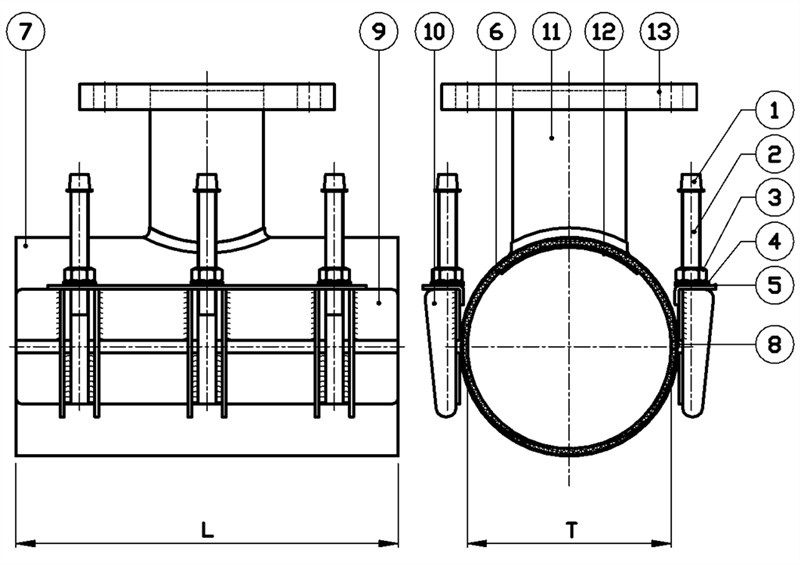

Components

1. Protection cap Plastic
2. Stud Stainless steel / PTFE coated
3. Nut Stainless steel AISI 304
4. Washer Stainless steel AISI 304
5. Bridge Stainless steel AISI 304
6. Lining EPDM rubber
7. Body plate Stainless steel AISI 304
8. Spanner plate Stainless steel AISI 304
9. Side plate Stainless steel AISI 304
10. Finger Stainless steel AISI 304
11. Pipe Stainless steel AISI 304
12. Seal EPDM rubber
13. Flange Stainless steel AISI 304
0 Files In the package
