AVK GATE VALVE, FLANGED, PN16
EN 558 Series 3, F16 ISO mounting flange
Contact
Enquiries (Office)
AVK Singapore Pte. Limited, 40 Gambas Crescent Nordcom 2 757018 Singapore Singapore

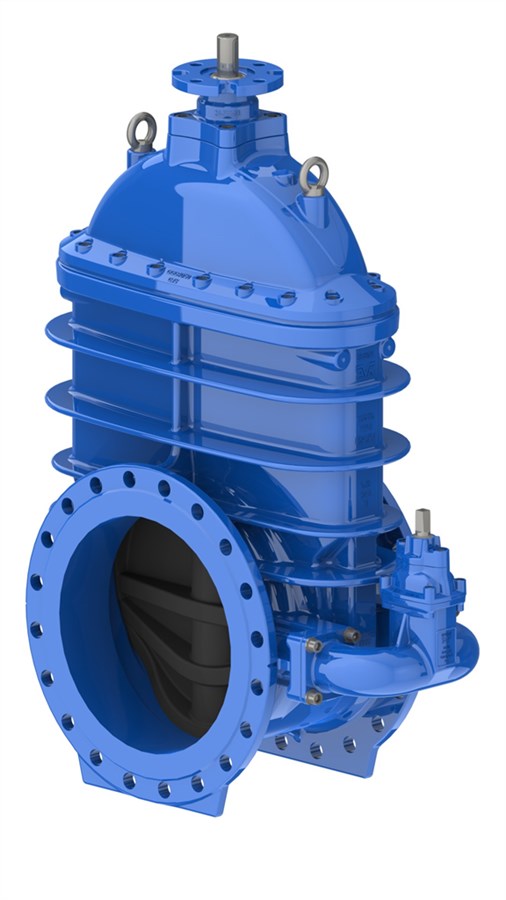

Flanged gate valve EN 558 Series 3 with by-pass. For water and neutral liquids. Temperature range: -10° C to +70° C.
The series 55/49 is a BS high performance, large diameter, resilient seated gate valve complete with single piece by-pass. The valve features the renown AVK, fully encapsulated wedge, allowing for flexibility in the final installed position and significantly reduced operating torques when compared to other valve designs. For installation above or below ground for water, neutral liquids and waste water.| Variant 55/49-002 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile iron |
| DN: | DN450 - DN600 |
| PN: | PN 16 |
| Closing direction: | Clockwise to Close |
Features
- Fixed, integral wedge nut prevents vibration and gives high durability
- Polyamide wedge shoes protect the wedge rubber and provide low operating torques
- A large conical stem hole in the wedge prevents stagnant water
- Triple safety stem sealings: An NBR wiper ring, a polyamide bearing with two O-rings, and with lip seal as the main hydraulic seals to the flow
- Two roller bearings and a thrust collar of stainless steel provide low operating torques
- Round EPDM bonnet gasket fixed in a recess
- Countersunk and sealed stainless steel bonnet bolts encircled by the bonnet gasket
- Full bore
- Integrated lifting eyes for easy handling
- Fusion bonded epoxy coating in compliance with DIN 3476 part 1 and EN 14901, GSK approved
- Actuator flange F16/ Spindle Ø40
- DN 450/500 at 16 bar differential pressure maximum operating torque set to 450 Nm
- DN 600 at 16 bar differental pressure maximum operating torque set to 500 Nm
- Options:
- without bypass 55/49-001
- F14 version 55/48-002
- CTO
Downloads
Datasheet
Appendix

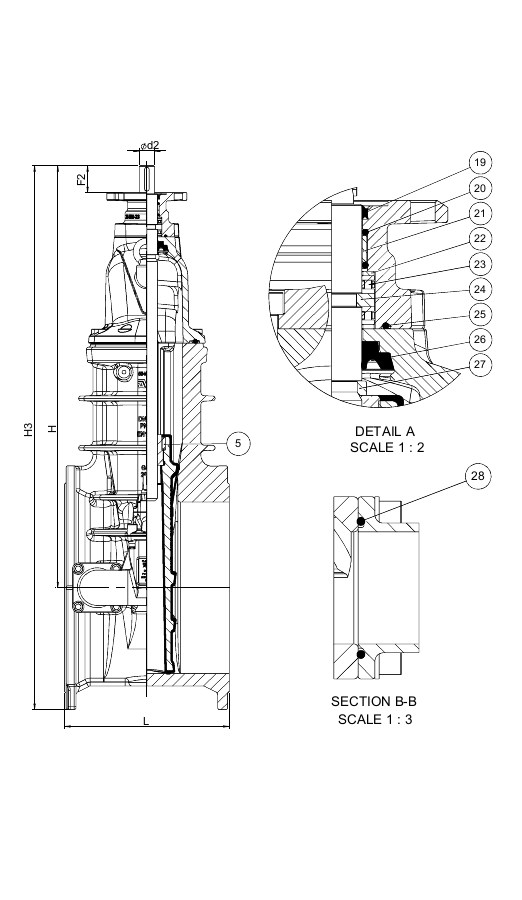

Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
Flange drilling |
L mm |
W mm |
W1 mm |
H mm |
H3 mm |
F2 mm |
D2 mm |
Dh mm |
Ds mm |
No. of bolts |
Actuator flange |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55-450-49-01400K | 450 | PN16 | 432 | 966 | 586 | 1008 | 1428 | 71 | 40 | 585 | 32.5 | 20 | F16 | 519 |
| 55-500-49-01400K | 500 | PN16 | 457 | 1016 | 600 | 1133 | 1491 | 71 | 40 | 650 | 35.5 | 20 | F16 | 549 |
| 55-600-49-01400K | 600 | PN16 | 508 | 1135 | 660 | 1276 | 1696 | 71 | 40 | 770 | 38.5 | 20 | F16 | 745 |
2D/3D drawings
Enquiry
Scroll for more info

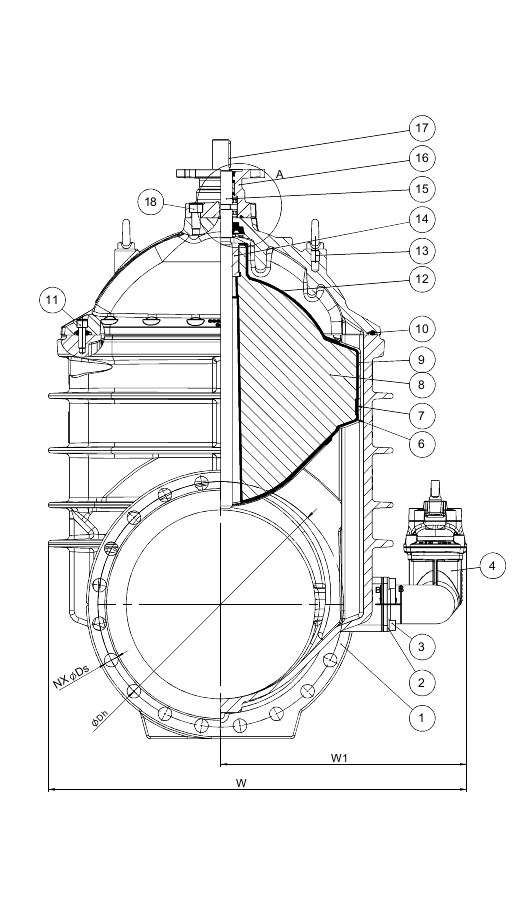

Components
| 1. | Body | Ductile iron GJS-500-7 (GGG-50) |
| 2. | Washer | Stainless steel A2 |
| 3. | Bolt | Stainless steel A2-70 |
| 4. | By-pass | Ductile iron GJS-500-7 (GGG-50) |
| 5. | Slotted pin | Stainless steel 1.4401 (AISI 316) |
| 6. | Wedge rubber | EPDM rubber |
| 7. | Clip for wedge | Brass CW612N |
| 8. | Wedge core | Ductile iron GJS-500-7 (GGG-50) |
| 9. | Wedge shoe | PA 6.6 |
| 10. | Bonnet gasket | EPDM rubber |
| 11. | Bolt | Stainless steel A2-70 |
| 12. | Bonnet | Ductile iron GJS-500-7 (GGG-50) |
| 13. | Eye bolt | Steel, hot dip galvanized |
| 14. | Wedge nut | Brass DZR CW626N |
| 15. | Stem | Stainless steel 1.4104 (AISI 430F) |
| 16. | Gland flange | Ductile iron GJS-500-7 (GGG-50) |
| 17. | Key | Stainless steel A2-70 |
| 18. | Bolt | Stainless steel A2-70 |
| 19. | Wiper ring | NBR rubber |
| 20. | O-ring | NBR rubber |
| 21. | Bearing shell | PA 6.6 |
| 22. | Thrust washer | Stainless steel 1.4104 (AISI 430F) |
| 23. | Bearing | Alloy steel |
| 24. | Thrust collar | Stainless steel 1.4104 (AISI 430F) |
| 25. | O-ring | NBR rubber |
| 26. | Stem seal | EPDM rubber |
| 27. | Stop ring | Stainless steel 1.4104 (AISI 430F) |
| 28. | O-ring | EPDM rubber |
Test/Approvals
- Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar). Operation torque test |
- Hydraulic test according to EN 1074-1 and -2 / EN 12266
Standards
- EN 1074 part 1 & 2
- Face-to-face dimension according to EN 558, Series 3
- Flange drilling to EN1092, PN16
- WIMES 8.09 Compliant
