AVK CONTROL VALVE, PRESSURE SUSTAIN/RELIEF, PN10/16

Reduced bore, 304/DI trim, 300µm blue EP

Contact

Enquiries (Office)

AVK Singapore Pte. Limited, 40 Gambas Crescent Nordcom 2 757018 Singapore Singapore

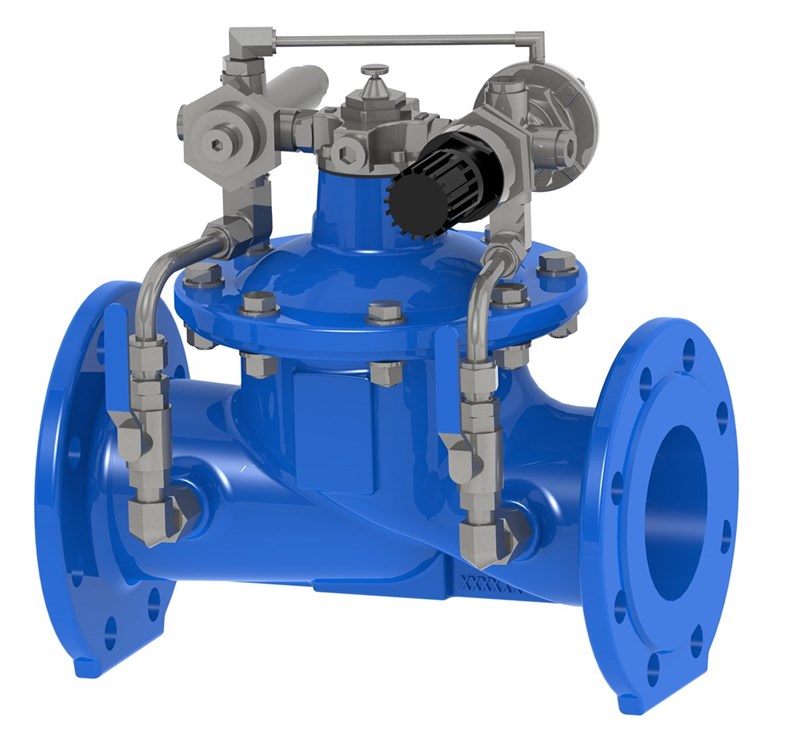

Pressure sustaining/relief control valve, reduced bore, for water and neutral liquids to max. 70° C

AVK series 859 diaphragm actuated pressure sustaining control valves (PSV) automatically secure a minimum upstream pressure by reducing the flow if the upstream pressure drops below the setpoint.

Adjusting the setpoint above the usual operating pressure changes the function to pressure relief, where the valve automatically opens to dump excess upstream pressure if it exceeds the setpoint.

A replaceable spring inside the pilot makes it possible to operate in different pressure ranges and still keep the high precision. Setting and adjustment on a control knob on the pilot.

Variant 859/201X-001
Connection: Flanged
Material: Ductile iron
DN: DN65 - DN600
PN: PN10/16

Features

Main control valve

  • Lifted seat to avoid damage due to cavitation
  • Geometry of regulating plug provides high ratio of travel against Kv, resulting in optimal control performance
  • Non-symmetric axial position of rubber diaphragm results in less stretch/stress near closed position
  • All non-coated internals made of stainless steel AISI 304
  • Body and bonnet of ductile iron with fusion bonded epoxy, 300micron, GSK approved, RAL 5017, according to DIN 3476 and WRAS-DVGW/W270/UBA.
  • All rubber components with multiple approvals (EN 681-1, KTW, W270, ACS, WRAS)

Pilot system

  • Modular and compact design for easy application change
  • Integral Valve, mainly used for isolating the control chamber, fixing position of main valve, in case of servicing the pilot circuit. The integral Valve, can also be used, adjusting main valve reaction time
  • Main components made of stainless steel AISI 304:
    • Distribution block:
      -  Connecting main control valve to pilot system
      -  Control orifice
    • Filter:
      -  High capacity, easy to flush with possibility of back flushing
      -  Mesh 100, high performance wire screen type
    • Hydraulic control block:
      -  Includes balance pilot, providing a more stable pressure setpoint
      -  Can be set up for different applications using single-function or multi-function modules

Downloads

Datasheet

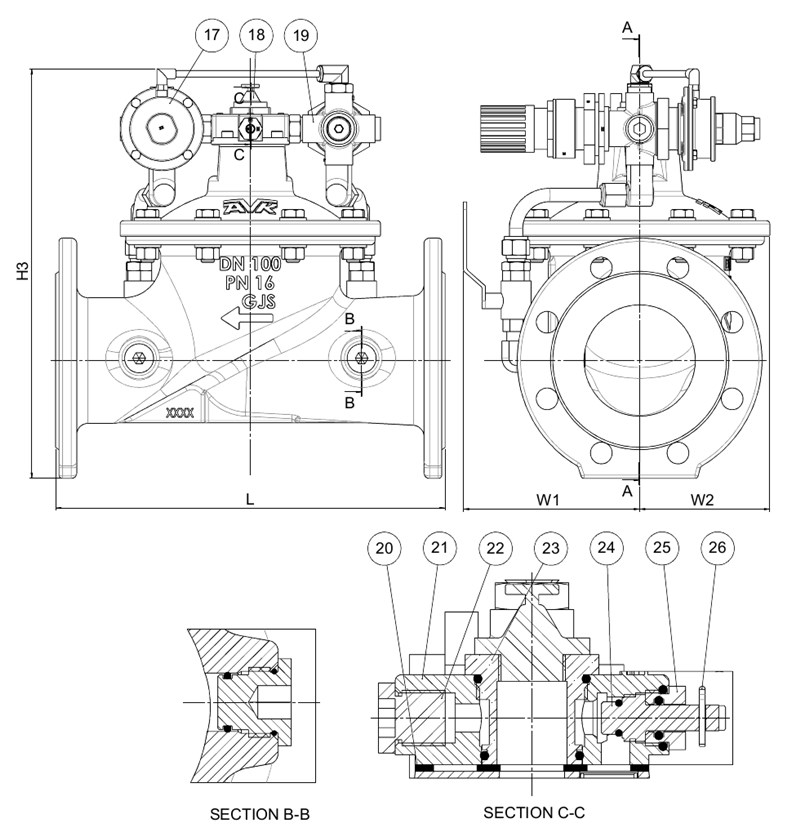

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm		 Flange
drilling		 Press. Range
bar		 L
mm		 W1
mm		 W2
mm		 H3
mm		 Theoretical
weight/kg
859-0065-20-1640011 65 PN10/16 5 - 11 290 140 122 348 17
859-0080-20-1640011 80 PN10/16 5 - 11 310 140 122 367 21
859-0100-20-1640011 100 PN10/16 5 - 11 350 140 122 386 26
859-0125-20-1640011 125 PN10/16 5 - 11 400 140 122 405 31
859-0150-20-1640011 150 PN10/16 5 - 11 480 140 139 443 73
859-0200-20-1640011 200 PN16 5 - 11 600 202 202 534 87
859-0250-20-1640011 250 PN16 5 - 11 730 252 252 651 144
859-0300-20-1640011 300 PN16 5 - 11 850 275 275 728 203
859-0350-20-1640011 350 PN16 5 - 10 980 302 302 808 320
859-0400-20-1640011 400 PN16 5 - 10 1100 355 355 932 498
859-0450-20-1640011 450 PN16 5 - 10 1200 398 398 998 636
859-0500-20-1640011 500 PN16 5 - 10 1250 465 465 1181 938
859-0600-20-1640011 600 PN16 5 - 10 1450 509 509 1290 1282
Enquiry
Scroll for more info

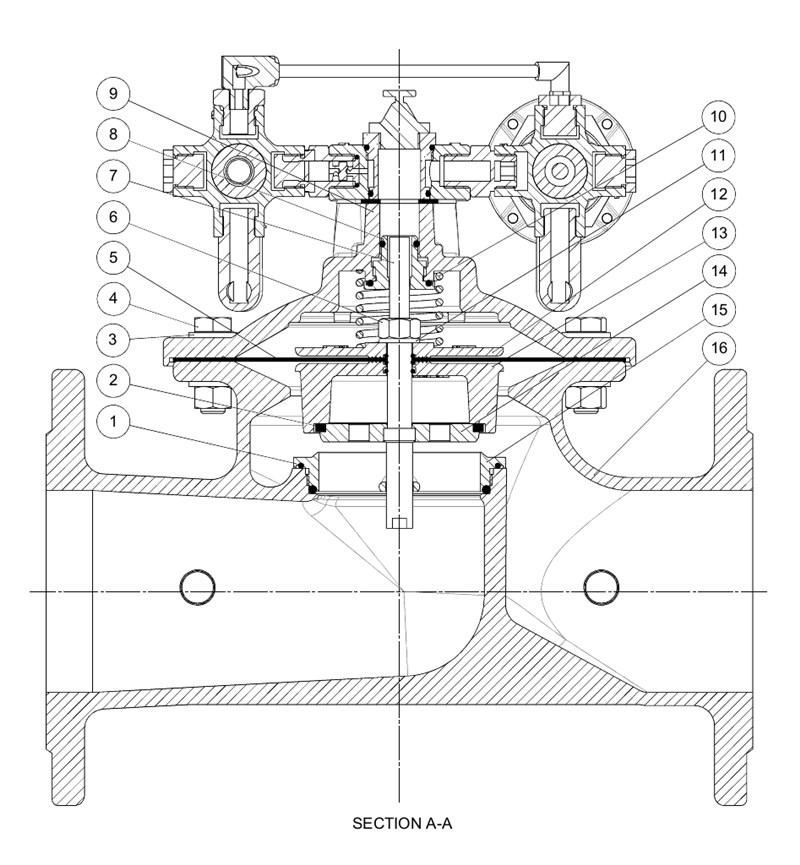

Components

1. O-ring EPDM rubber
2. Plug sealing EPDM rubber
3. Washer Stainless steel A2
4. Bolt Stainless steel A2
5. Diaphragm EPDM rubber
6. Nut Stainless steel A2
7. Stem Stainless steel AISI 431
8. Stem guide Stainless steel AISI 304
9. Bonnet Ductile iron GJS-500-7 (GGG-50)
10. Spring Stainless steel AISI 304
11. Washer Bronze CC499K
12. Diaphragm support Ductile iron GJS-500-7 (GGG-50)
13. Disc retainer Ductile iron GJS-500-7 (GGG-50)
14. Regulating disc Stainless steel AISI 304
15. Seat Stainless steel AISI 304
16. Body Ductile iron GJS-500-7 (GGG-50)
17. Pilot valve Stainless steel AISI 304
18. Mechanical air-vent Stainless steel AISI 304
19. Filter Stainless steel AISI 304
20. Gasket EPDM rubber
21. Body Stainless steel AISI 304
22. Plug Stainless steel AISI 304
23. Insert Stainless steel AISI 304
24. Needle Stainless steel AISI 304
25. Bushing Stainless steel AISI 304
26. Spring pin Stainless steel A2

Test/Approvals

  • Hydraulic test according to EN 1074-1 and 5/ EN12266
  • WRAS approved materials

Standards

  • EN 1074-5
  • Face-to-face dimension according to EN 558, Series 1
  • Flange drilling to EN1092, PN10/16
